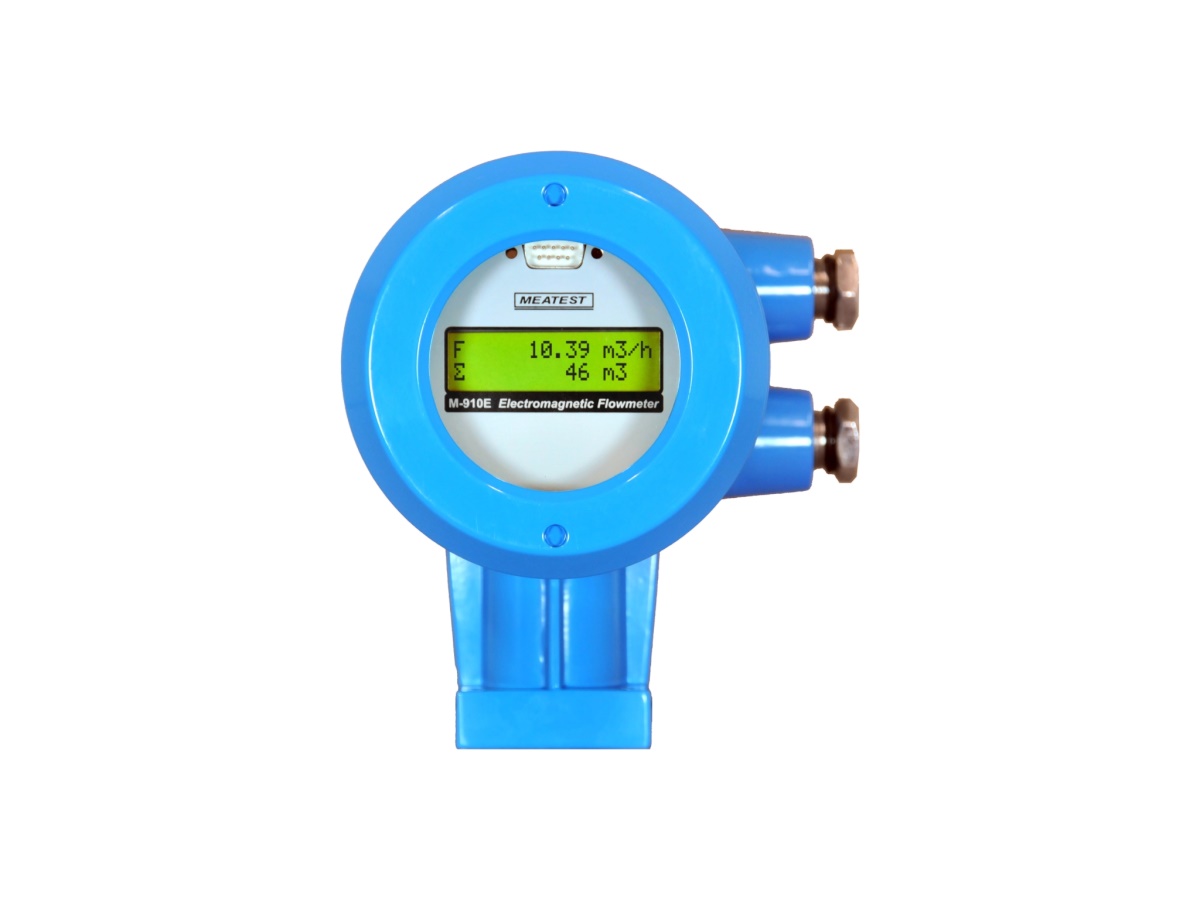

[Obsolete] M910E Economic Electromagnetic Flow Meter
Electromagnetic flow meter with basic digital outputs, RS232 and current loop for automatic process control.
- Touchless magnetic pointer and remote control
- 4 different I/O interfaces

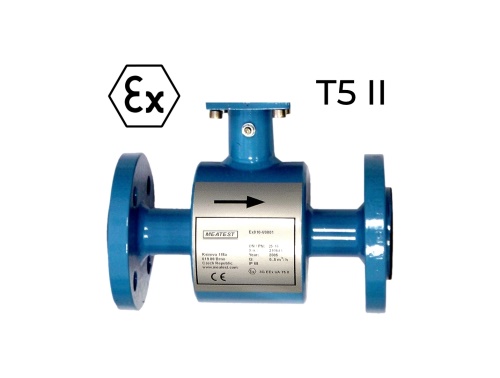

M910E Economic Electromagnetic Flow Meter accurately measures flow of conductive liquids from 5 µS up. As there are no moving parts in the flow profile the flow meter can be applied to measure extremely polluted liquids containing even solid pollution. Evaluation and readout unit (transmitter) indicates both positive and negative flow as well as total and custom volume counters. Ex910E sensor for use in potentially explosive atmospheres in category II 3G EEx nA II T5/T6 is available in remote version of the flow meter.
Model-specific features
Compared to M910E, the M910 has keyboard, RS485, datalogger, dosing feature, additional relay switch output and digital input. M910's interface include three digital outputs (frequency, pulse and relays), 4-20 mA current loop, digital input, RS232 and RS485.
Typical applications
M910 with its wide range of outputs can be used in areas such as paper, water, waste-water, etc. M910E economic version is suitable for uncritical, price sensitive applications with real time data processing (PLCs, evaluation units, etc.).
| Flow (liquid) |
0.1 - 10 m/s accuracy 0.5% |
Interface
| Frequency (out) | 0 - 12 kHz |
| Pulse (out) | ≥ 20 ms |
| Current loop (out) | 4 - 20 mA |
| Serial bus (both) | RS232 |
Datasheets
Remote control
|
|
Economic version - RS232 and 3 basic outputs. |
|
|
Full version with keypad, 7 I/O interfaces and datalogger. |
