M133Ci 3F Power & Energy Calibrator
Three phase electric power/energy calibrator for calibration and testing of power meters and power transducers.
- 0.01° phase shift accuracy
- 15 - 1000 Hz output
- Built-in multimeter for transducer calibration
- Floating current outputs for 3-wire power meters
- Voltage from Current function
M133C is electric AC/DC power and energy calibrator for calibration of power meters, power transducers
and generally all kinds of power measuring devices. AC voltage, current, power and energy functions have
calibrated phase shift in frequency range from 15 Hz to 1 kHz with resolution as good as 0.001 Hz. Simulated
electric power can be set independently in each phase of both voltage and current signals. Built-in 5½
process multimeter for transducer calibration is standard part of every M133C calibrator.
Languages: English, Chinese (simplified)
Calibration versatility

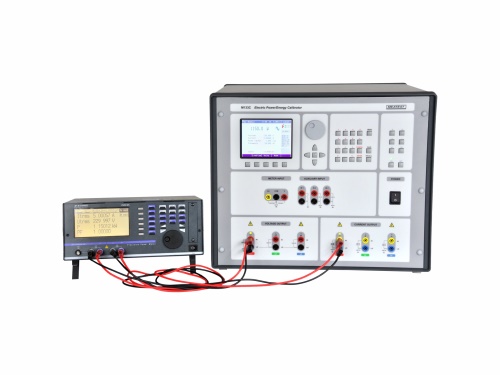

M133C is more than just a sophisticated power source. Using built-in process multimeter, both transducer inputs and outputs can be handled by the M133C at the same time so you can calibrate it more easily, using no other calibration equipment. Floating current outputs can be connected directly with voltage outputs to allow for 3-wire power meter calibration. One calibrator, many applications - saving your time, space and costs.
| DC voltage |
3x 1 - 280 V ± 150 ppm / year |
| AC voltage |
3x 1 - 600 V, 15 - 1000 Hz ± 120 ppm / year |
| DC current |
3x 5 mA - 30 A (2250 A with 151-25 Current Coil) ± 175 ppm / year |
| AC current |
3x 5 mA - 30 A, 15 - 1000 Hz (2250 A with 151-25 Current Coil) ± 175 ppm / year |
| DC Power & Energy |
3x 5 mW - 8.4 kW (3x 420 kW with 140-50 Current Coils) ± 380 ppm / year |
| AC Power & Energy |
3x 5 mW - 18 kW, 15 - 1000 Hz (3x 900 kW with 140-50 Current Coils) 0.01° phase shift accuracy, power factor -1 to +1 ± 370 ppm / year |
Process Multimeter
| DC voltage |
0 - 12 V ± 100 ppm / year |
| DC current |
0 - 25 mA ± 100 ppm / year |
| Frequency |
1 Hz - 15 kHz ± 50 ppm / year |
Datasheets

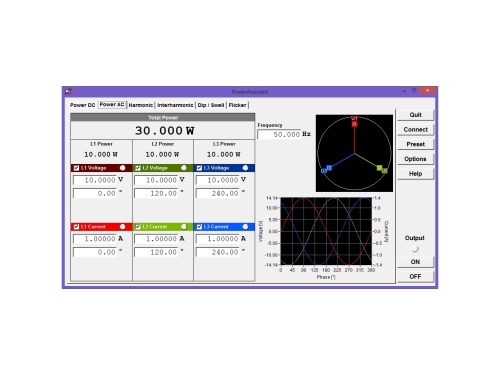

Remote control
|
|
3-phase version, sine signals only. |
|
|
3-phase version with power quality functions. |
|
|
Single-phase version with power quality functions. |
|
|
Single-phase version, sine signals only. |
|
|

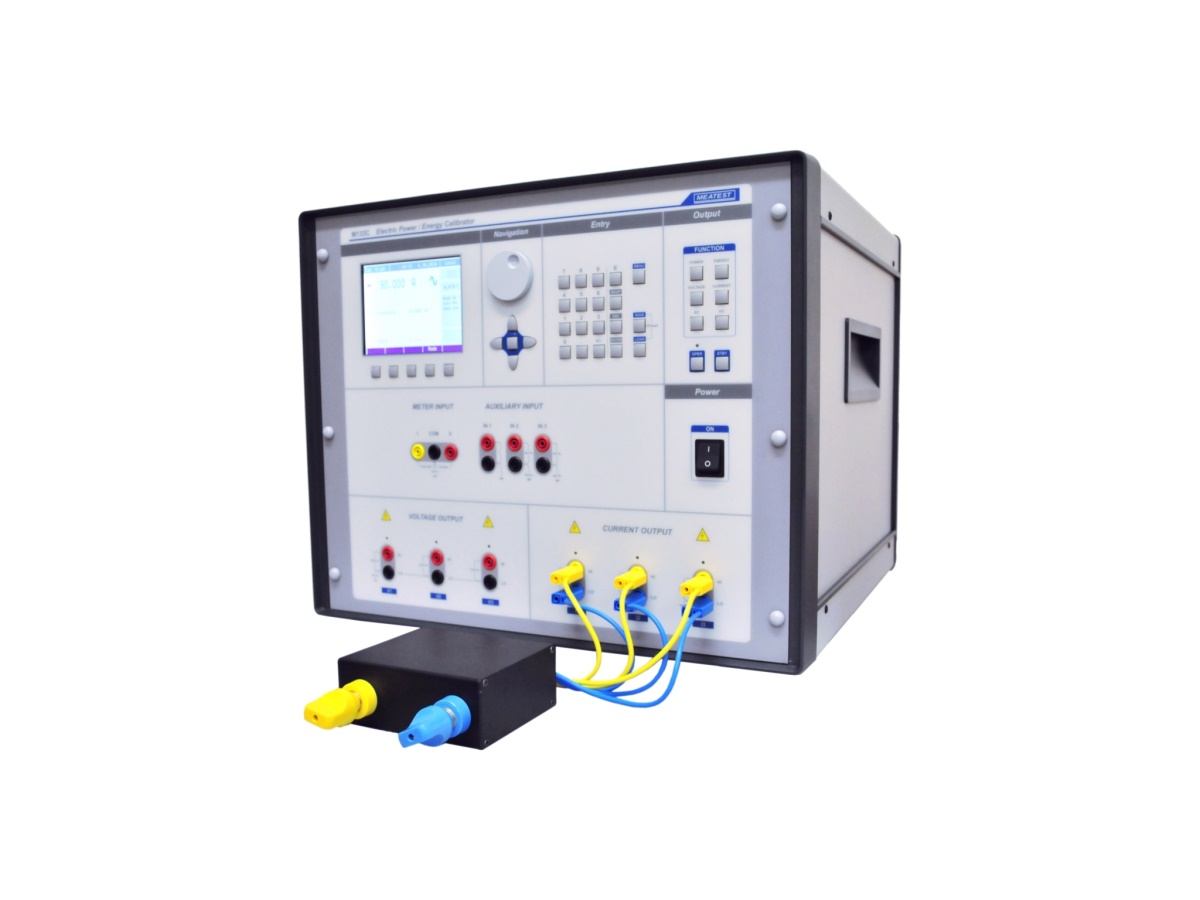

High Current Adapter 133-01
joins all 3 current outputs to increase output range to 90 A
|
|
|
Current Coil 0950
multiplication factors 10x, 25x and 50x, 1500 A maximumgo to product page |
|
|
Current Coil 151-25
x25 multiplier, 3000 A maximum, active coolinggo to product page |
